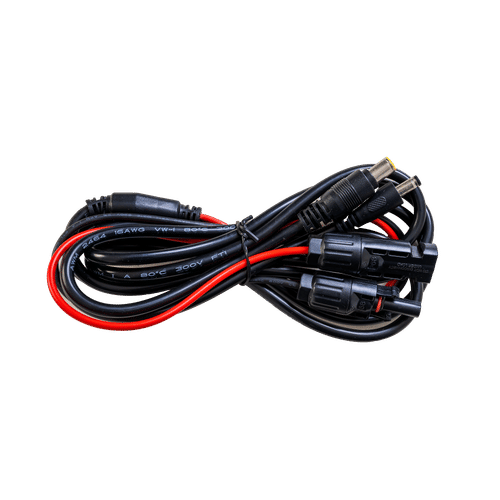

MULTI DC 5521/35135/5525/7909 MC4 ADAPTER CABLE

This power adapter cable allows you allows you to convert your Solar connection from DC5521, DC35135, DC5525 & DC8 making it easy to connect Portable Power Stations to standard Solar Panels that make use of MC4 Connectors.

Specifications:
Cable colour: black round cable
Connector 1: DC5521 (5.5 x 2.1 mm)
Connector 2: MC4 connector (Positive to MC4 female, Negative to MC4 male)
Adapter 1: DC35135 (3.5 x 1.3 mm) Male to DC5521 (5.5 x 2.1 mm) Female
Adapter 2: DC5525 (5.5 x 2.5 mm) Male to DC5521 (5.5 x 2.1 mm) Female
Adapter 3: DC7909 (8 x 2.5 mm) Male to DC8 (5.5 x 2.1 mm) Female
Wire thickness: 14 AWG.
Nominal temperature: 70?.
Rated voltage: 220 V.
Nominal current: 20 A.
Water resistance: IP67.
Conductor: copper
Cable length: 20cm

What's in the box
1 x DC5521 to MC4 Adapter Cable
1 x Adapter DC35135 (3.5 x 1.3 mm) Male to DC5521 (5.5 x 2.1 mm) Female
1 x Adapter DC5525 (5.5 x 2.5 mm) Male to DC5521 (5.5 x 2.1 mm) Female
1 x Adapter DC7909 (8 x 2.5 mm) Male to DC8 (5.5 x 2.1 mm) Female
