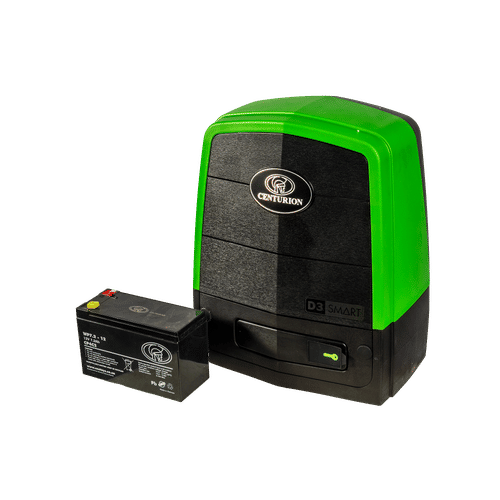

CENTURION D3 12v GATE MOTOR

Intelligent features :advanced alerts, notifications and reporting keep you informed and in control
Fast and Secure: Open your gate in a flash, keeping unwanted visitors at bay
Intelligent Features: Advanced alerts, notifications and reporting keep you informed and in control

SKU: ORS92847

Selling Unit: SET

Availability: In stock

$308.99

Login to gain Rewards and see other benefits

Qty:

i h

Intelligent features :advanced alerts, notifications and reporting keep you informed and in control
Fast and Secure: Open your gate in a flash, keeping unwanted visitors at bay
Intelligent Features: Advanced alerts, notifications and reporting keep you informed and in control

Products specifications

Application	Gate Automation
Input voltage(1)	110V - 240V AC 50/60Hz (1)
Current consumption (mains)	320mA peak
Dx12V Battery charger current output	1.8A @ 14.3V +/- 5% (28W)
Maximum number of operations per day	20 (3,6)
Duty cycle - Mains present (2,3)	25%
Motor power supply	Battery-driven (Standard Capacity - 1x12V)
Current consumption (motor at rated load)	11A
Fuse Protection	Type \| Rating
Main Control Card	Serviceable \| 35A
Aux. Supply	Resetable Fuse \| 12V 300mA MAX (10sec Pulse)
Charger (Mains Supply)	Non-serviceable \| 3A slow-blow
Motor push force - starting	18kgf
Motor push force - rated	12kgf
Gate mass - maximum	300kg
Gate speed (varies with load) (4)	Maximum: Up to 24m/min Rated: Up to 21m/min
Manual Override	Lockable with key release
Operations whilst in Battery backup mode with 7.2Ah Battery	Operating Mode
Half day (5,6,8)	90 \| 80
Full day (5,6,8)	70 \| 65
Collision Sensing	Electronic
Operating temperature range	-15°C to +50°C
Onboard receiver type	Code-hopping multichannel receiver with selective add and delete
Receiver code storage capacity	32 Remotes (7)
Receiver frequency	433.92MHz
Degree of protection	IP55
